The New NAVIGATOR™ Family
Delmhorst introduces the new Navigator™ family of moisture meters with models available for the building trades, lumber and woodworking, and agriculture. These exciting new products are the result of a fully-engineered program plan, including a careful human factors review and multiple usability studies.
All models are packaged in a robust and ergonomically designed ABS case (patent pending) to provide a premium tactile feel, and an intuitive user interface with dashboard-like display. Together with the new Delmhorst EDGE™ App available with the Bluetooth®-enabled -30 model meters, users can customize meter settings, save unlimited readings with timestamp and geotag, and share MC data quickly and accurately.
The Navigator™ meters carry a two-year limited warranty and, as with all our products, include Delmhorst’s legendary support.

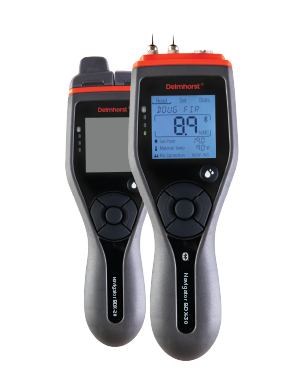

BDX-20 and BDX-30
The latest in the legendary BD Series pin meters for water damage restoration technicians and the building trades. Measure moisture levels in wood, drywall, plaster, and most hygroscopic building materials. The BDX-20 and BDX-30 will ensure maximum performance and reliability on every job.
Key Features:
- 3 measurement scales:
- 6%-60% – Wood (Douglas Fir)
- 0.1%-6% – Drywall
- 0-100 Reference scale
- Wood temperature correction (°F/°C)
- Select from 37 species and materials (BDX-30)
- Integral electrode pins – 5/16in penetration
- Hard plastic carrying case included
JX-20 and JX-30
The JX meters offer a professional-grade, accurate, and versatile tool to the lumber, sawmill, and woodworking sectors, as well as hardwood flooring installers and inspectors. Perform every job with complete confidence.
Key Features:
- MC Range: 6%-60% – Wood (Douglas Fir)
- 74 species corrections, plus 123 additional species available through the app (JX-30)
- Wood temperature correction (°F/°C)
- Pin/electrode correction (insulated or non-insulated)
- Integral electrode pins – 5/16 in. penetration
- Hard plastic carrying case included
The next generation of moisture meters is here, with the introduction of the Navigator™
Series and EDGE™ app from Delmhorst.

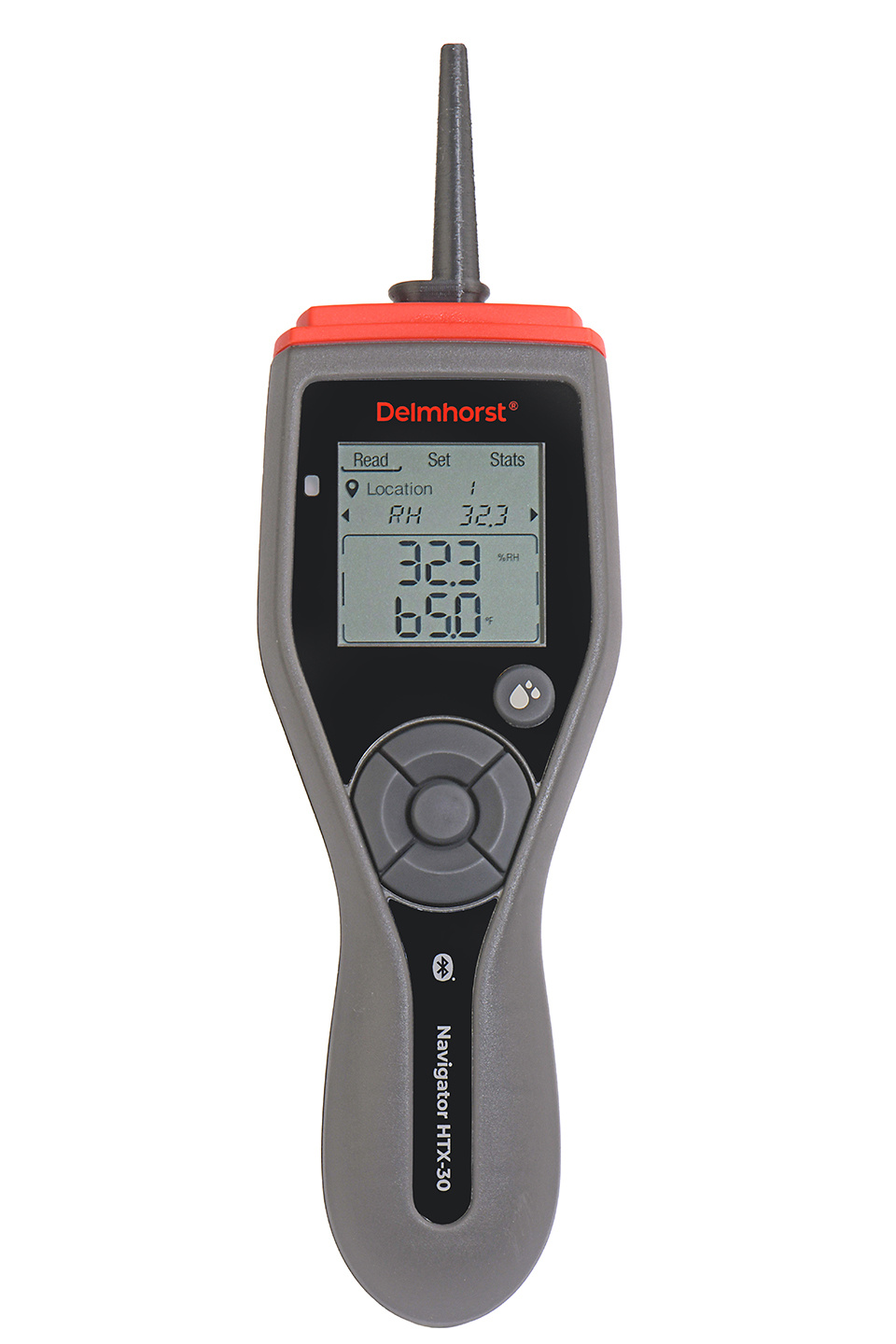

THE NEW HTX-30 - Coming Soon!
The HTX-30 all-purpose Thermo-Hygrometer is the latest product from the Delmhorst® Navigator® meter family. The hand-held HTX-30 has a quick response time, simple interface and provides useful statistics, making it the ideal tool for measuring air conditions in water damage restoration, building inspections, flooring installations and many other industrial and research applications.
The HTX-30 measures Temperature and Relative Humidity. The meter calculates Vapor Pressure, Dewpoint, and Mixing Ratio. Through Bluetooth® Low Energy technology, the HTX-30 can connect to the EDGE™ app and share saved readings for further analysis. The EDGE™ app gives users the option to add names to each location and designate them as a location/room or dehumidifier. Additionally, users will be able to add notes to individual readings, view and filter all readings, and export readings to a CSV file. The HTX-30 makes the most challenging projects easier, less costly, and more efficient.
Features
- Delmhorst® EDGE™ app with Bluetooth® connectivity
- Large, dashboard-like custom display with auto backlight – easy to read under all conditions
- 3.5 mm probe connector for easy and durable connection
- Measures
- Relative Humidity (%RH)
- Temperature (°F, °C)
- Calculates
- Vapor Pressure (PSI, kPa)
- Mixing Ratio (GPP, GPK)
- Dewpoint (°F, °C)
- Settings
- Customize Read Screen Measurements
- Bluetooth
- Set Location Number (1-30)
- Display Brightness
- Display Contrast
- Display Backlight
- Display Timeout
- Statistics On-screen readings statistics – High, Low, Average, Standard Deviation, view readings
-
- Statistics can be filtered by location
- Date and time of measurement
- Includes sturdy plastic carrying case
- Includes 1 Short RH/T probe, 1 Long RH/T probe, and 1 extension cable
Meter Specifications
- Powered by 2 x AA batteries
- QR code on meter for easy access to support materials
- Size: meter only - 8.6in (220mm) x 2.9in (74MM) x 1.6in (41mm); in carry case - 10.5in (266.7mm) x 7.0in (177.8mm) x 2.5in (64mm)
- Weight: meter only - (with batteries): 7.3oz (207g); in carry case weight: 13.6oz (386g)
- Hard plastic carrying case - included
- 1 Short RH/T probe, 1 Long RH/T probe, and 1 extension cable - included
- 2-year warranty on manufacturer defects. Bonus extend warranty with meter with on-line registration
Paper-based products are hygroscopic and highly sensitive to moisture. The PX-series meters are the perfect tools for monitoring moisture levels during the production and converting processes, and provide maximum performance and reliability. These meters are especially useful for paper and board, corrugated stock, cores, tubes, and recycled materials.
PX-20 and PX-30
Key Features:
- Moisture Range:
- 4.3%-18% – MC paper (kraft calibration)
- 5%-40% – baled scrap paper (PX-30)
- 0-100 reference scale- relative (wet/dry) moisture levels on paper material (PX-30)
- Integral electrode pins - 5/16 in. penetration
- Special application electrodes available
- Hard plastic carrying case
CX-30 – COTTON
The new CX-30 cotton moisture meter is the perfect tool for monitoring moisture content quickly during harvest and ginning. The CX-30 includes 4 measurement scales and has Bluetooth® integration with the Delmhorst EDGE™ app.
Key Features:
- MC range:
- 4%-18% – lint cotton
- 6%-20% – seed cotton
- 12%-30% – wool
- 6%-25% – viscose/rayon
- Hard plastic carrying case included
- Special application electrodes available
FX-20 – HAY
Accurate hay moisture monitoring is essential to reduce mold development, preserve leaves, color, and feed value. The FX-20 Hay Meter is perfect for large and small volume producers to ensure reliable readings in the windrow, or in any size bale package. MC Range: 6-40%.
FX-30 – HAY, HOPS, HEMP, BRAZIL NUTS, TOBACCO, DATES/DRIED FRUIT
Having a reliable, accurate tool to monitor moisture through each phase of the production process enhances quality control and increases profits.
The FX-30 is a multi-purpose meter that features the Delmhorst EDGE™ app with customizable settings, the ability to share user data, and six user-selectable calibrations. Depending on the product being tested, use the 830 series prods (hay, hemp, hops, tobacco) or the 2-E or 22-E, 52-E/C electrodes (brazil nuts, dates/dried fruit, hemp, hops).
Key Features:
- Moisture Range:
- Hay – 6%-40%
- Hops – 8%-23%
- Hemp – 7%-34%
- Tobacco – 8%-37%
- Brazil Nuts – 6%-25%
- Dates /Dried Fruit – 6%-25%
- Special application electrodes available
- Hard plastic carrying case optional
JLX-30
The JLX-30 is the latest in the “JL” line of meters for leather. The JLX-30 moisture meter is the perfect quality control tool for tanneries and processors. The JLX-30 will help minimize costly issues such as product and raw material waste, re-work, and over-under-drying. The meter includes Bluetooth® integration with the Delmhorst EDGE™ app.
Key Features:
- Moisture Range: 10%-28%
- Integral electrode pins – 5/16 in. penetration
- Hard plastic carrying case included
