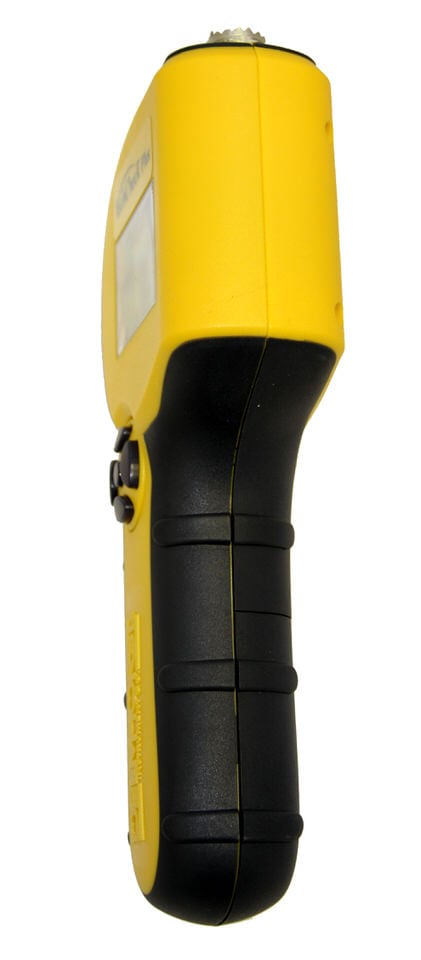

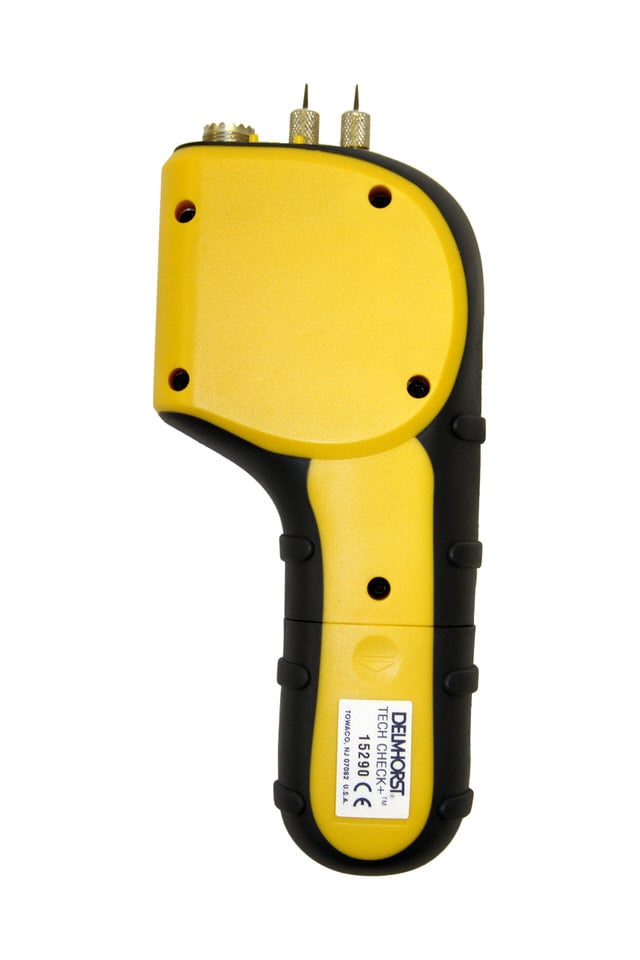

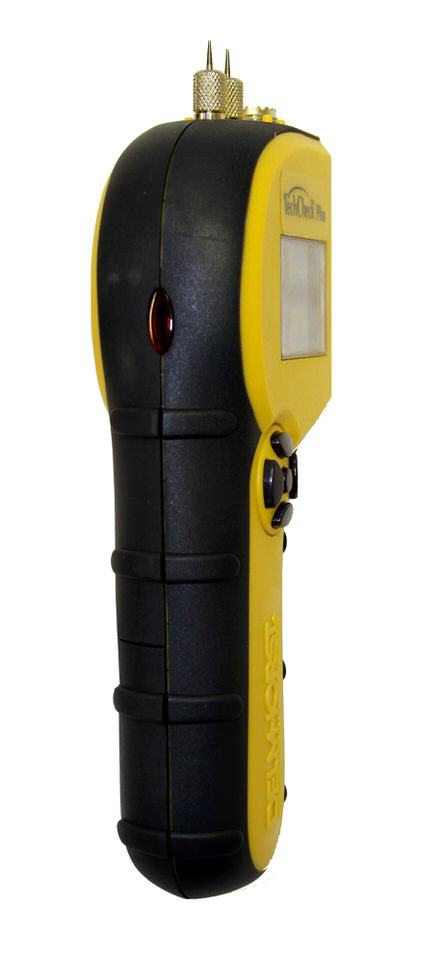

TechCheck PLUS

Given the challenging conditions of building inspection, installation, and drying jobs, it pays to have an easy-to-use moisture meter that you can depend on. The easy-to-use 2-in-1 TechCheck PLUS was designed with simplicity in mind and helps to make even the most demanding job simple. The newly updated TechCheck PLUS has all the great features you've come to expect, along with some new ones.

Where to Buy

Product Features

  • Bright, clear digital display.
  • Pin mode:
    • 0.1% - 6% drywall scale, Delmhorst Exclusive.
    • 6%-60% MC wood scale.

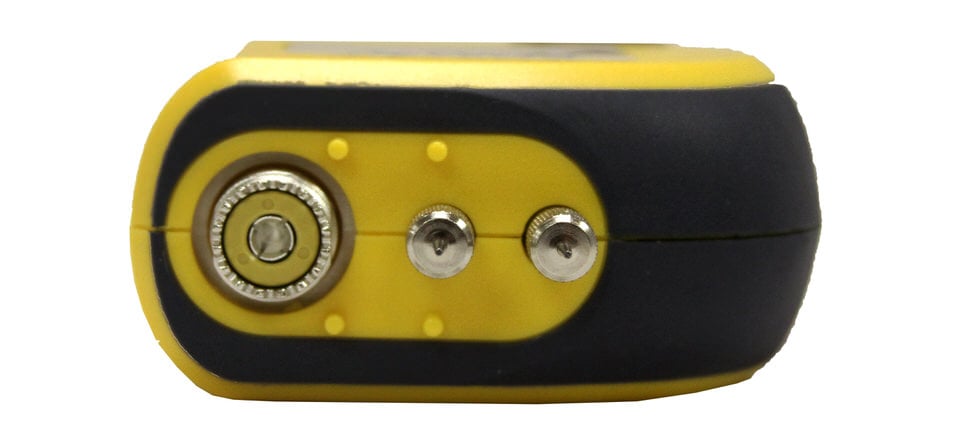

    • Integral Contact pins mounted on top of meter provide 5/16” penetration.
    • Built-in connector accepts any Delmhorst electrode.
  • Scan Mode: (0-300 numerical reference scale).
  • Spanish language option.
  • Built-in back-light makes reading in dark places a cinch.
  • Auto-shutoff timer saves battery life.
  • Audible, adjustable alarm alerts you when your pre-selected MC has been reached.
  • Size: 8 ½” x 3 3/8” x 1 ¾”.
  • Weight: 11 oz.
  • Rugged construction ensures years of reliable use.
  • Sturdy plastic carrying case.
  • 9V battery.
  • 1-year warranty.

TechCheck PLUS Package Variations:

TechCheck PLUS: Includes meter, carrying case and additional contact pins. Order as TECHCHECK+W/CS. (Price: $640.00)

TechCheck PLUS Insulation package: Includes meter, 21-E electrode, extra contact pins for the meter, and carrying case. Order as TECHCHECK+/PKG. (Price: $690.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

TechCheck PLUS Accessories:


1849

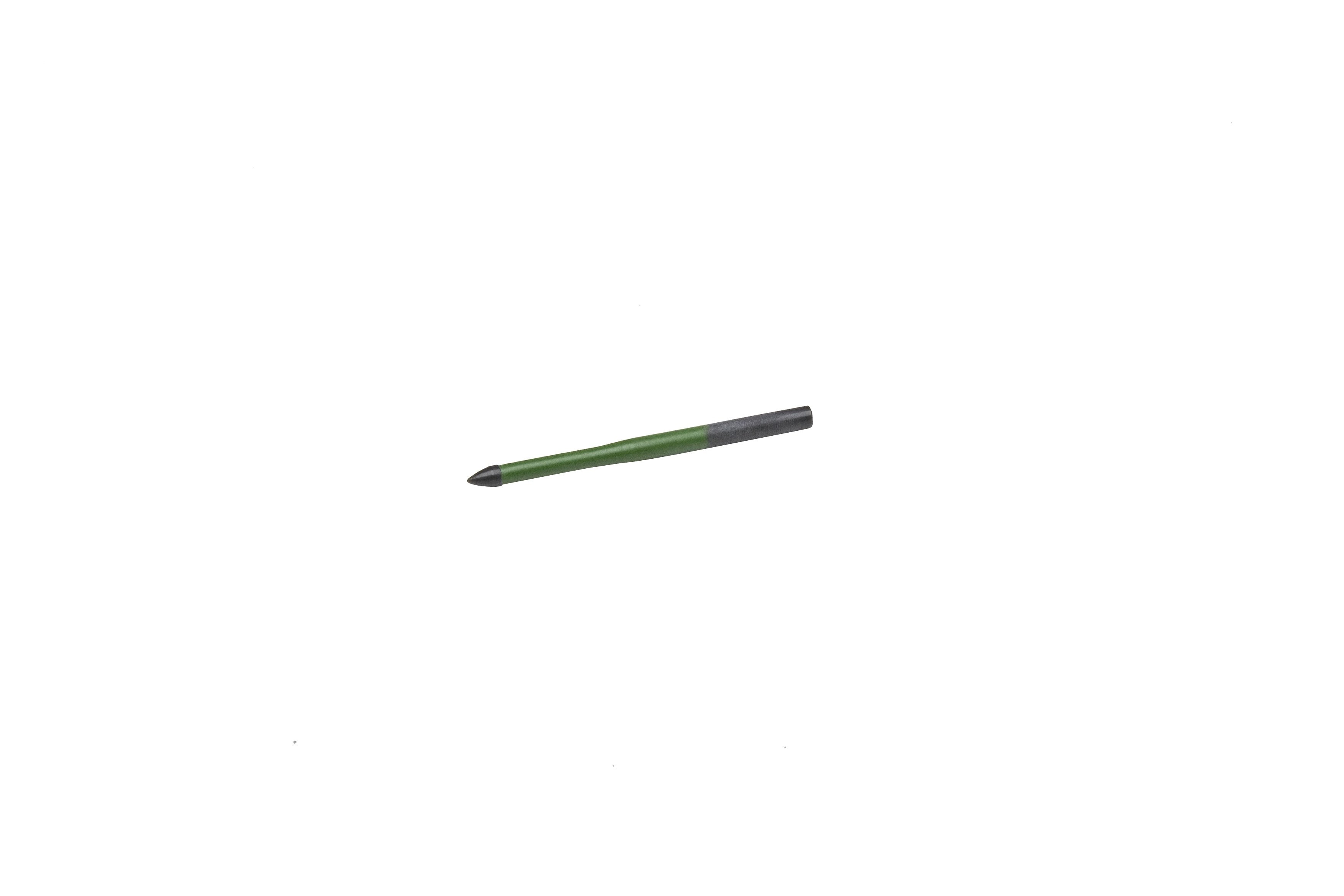

An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

Order as:

1849/24 (Price: $78.00)

1849/100 (Price: $325.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


2497/A-100

Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum.

Order as:

2497/A-100/24 (Price: $54.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


305RET-0021

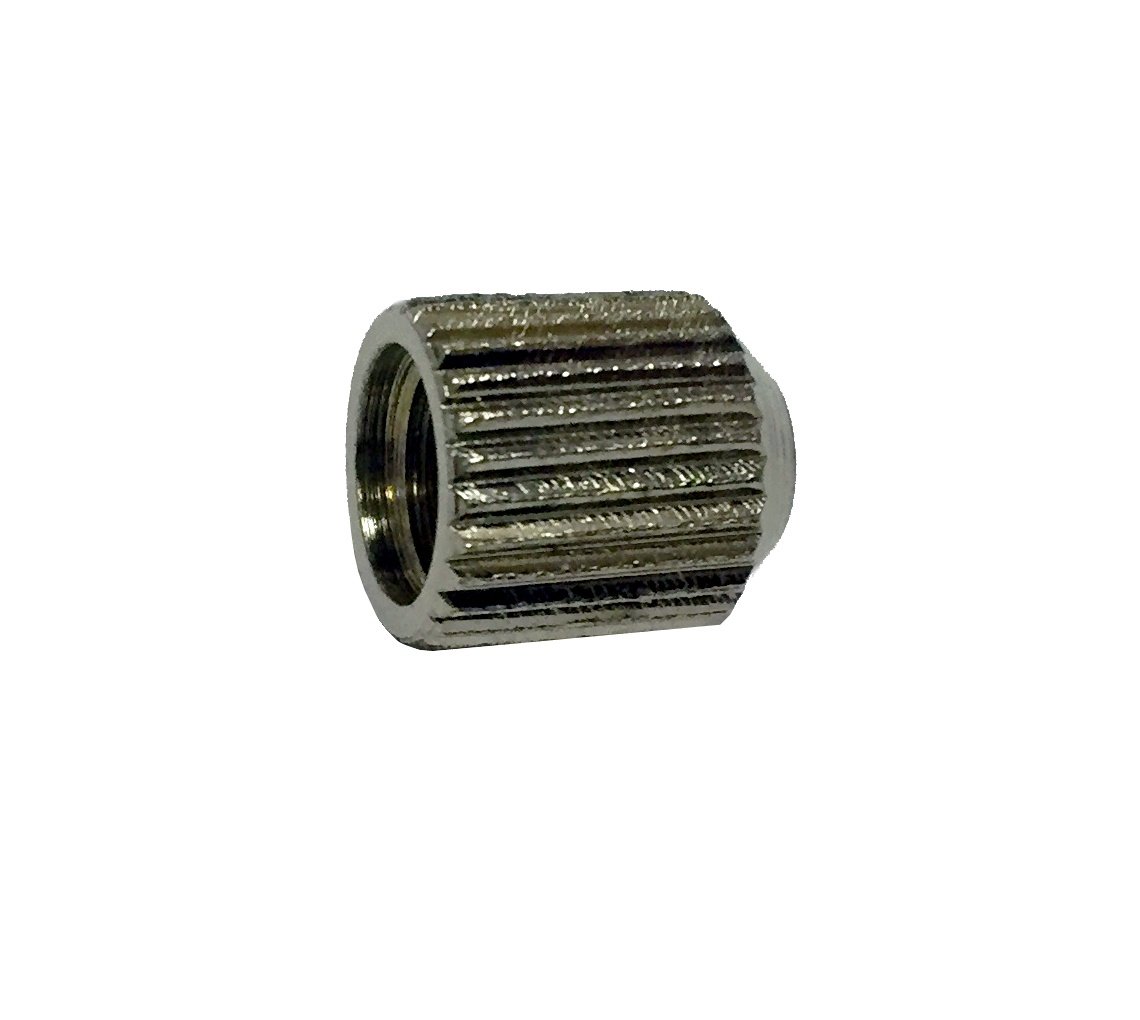

Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

Order as:

305RET-0004/2 (Price: $8.00)

305RET-0021/4 (Price: $16.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


496

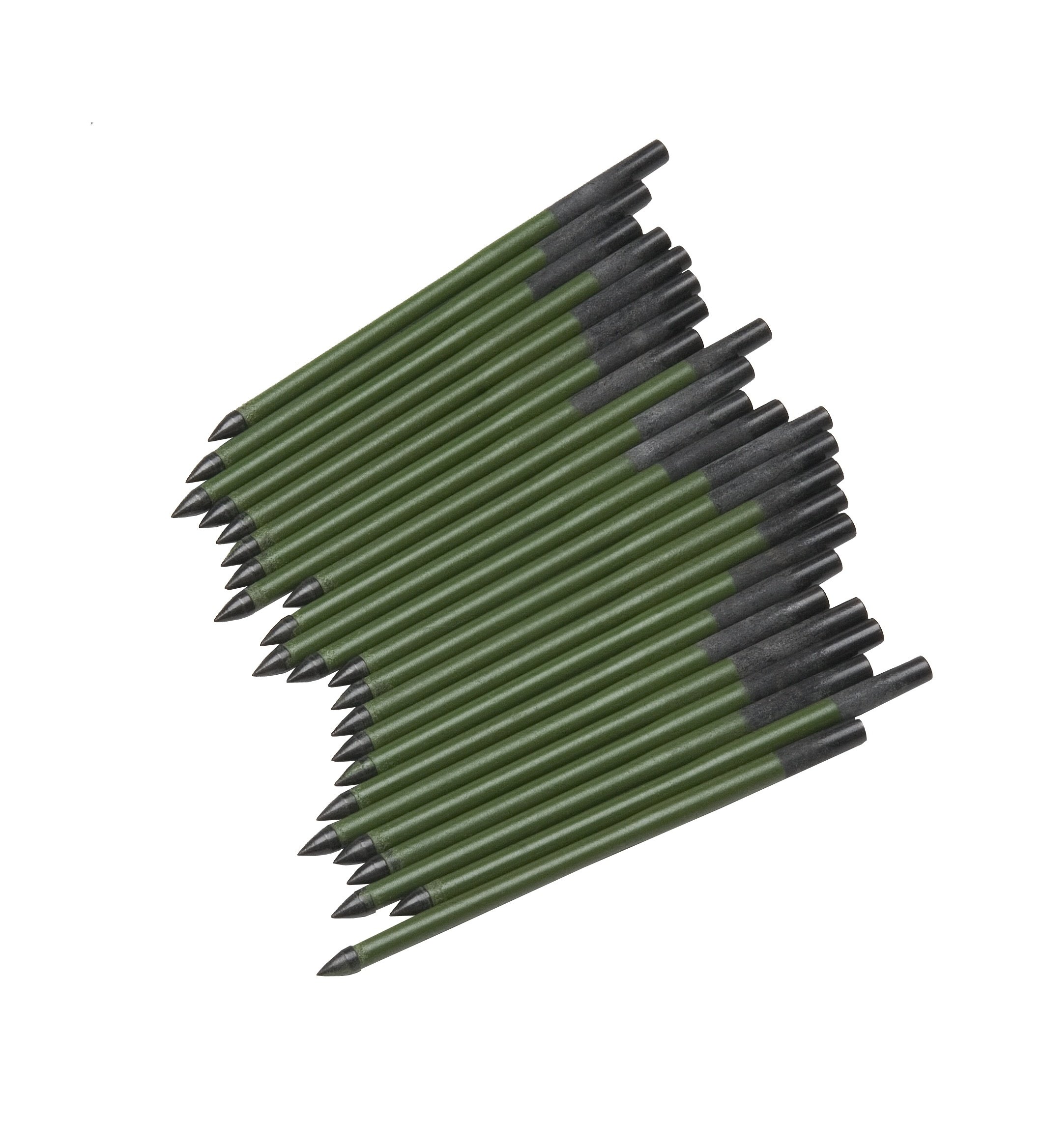

496 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

Order as:

496/24 (Price: $78.00)

496/100 (Price: $325.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

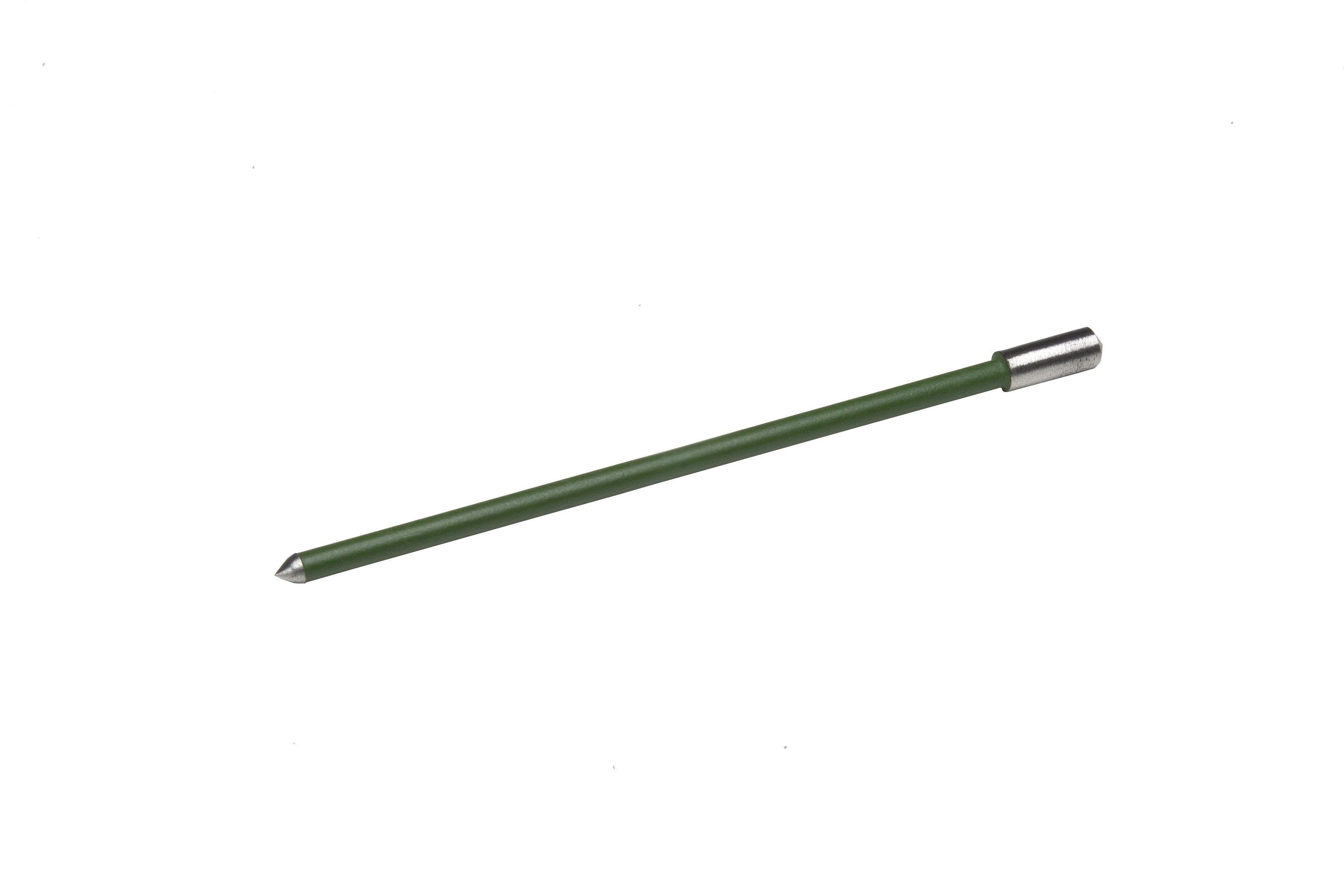

608

The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4". Standard on 21-E and 18-ES electrodes, and can be used on roofing, insulation, timber, poles, and EIFS. Also available in 7” length with 6” penetration as 608/001.

Order as:

608/4 (Price: $60.00)

608/001/4 (Price: $70.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


632

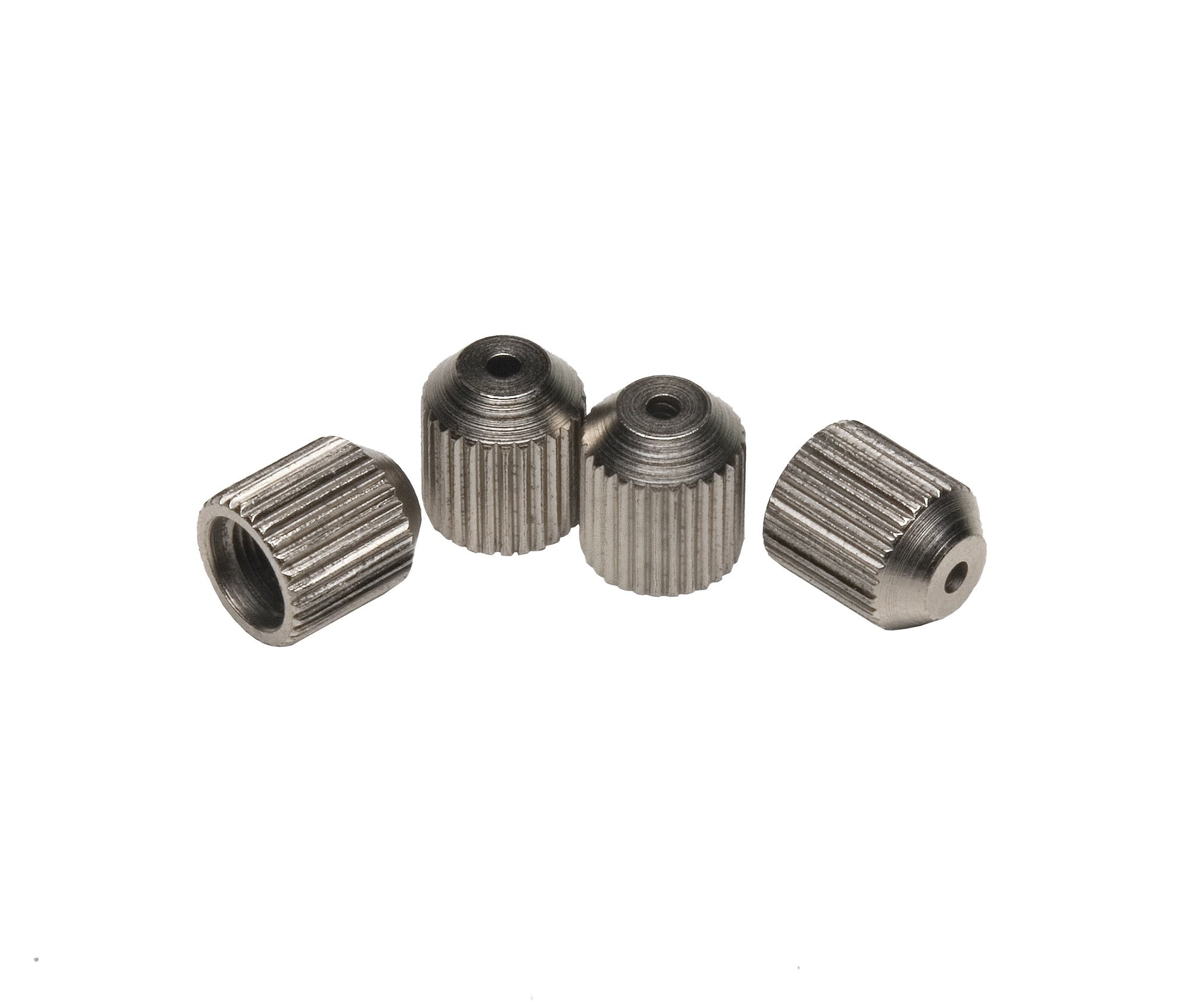

Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4.

Order as:

632/1238 (Price: $7.00)

632/4 (Price: $16.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


A-111

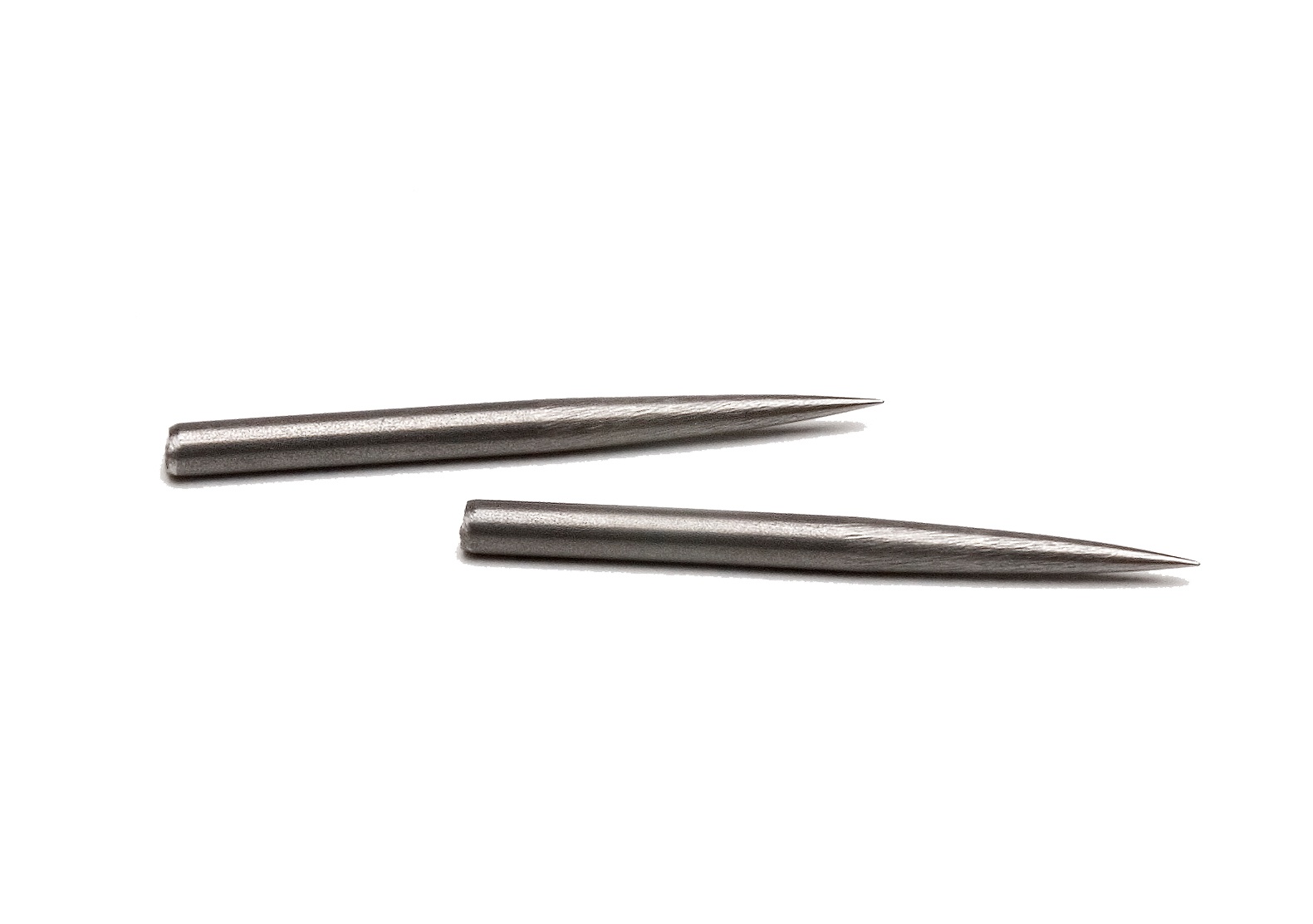

Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

Order as:

A-111/24 (Price: $37.20)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

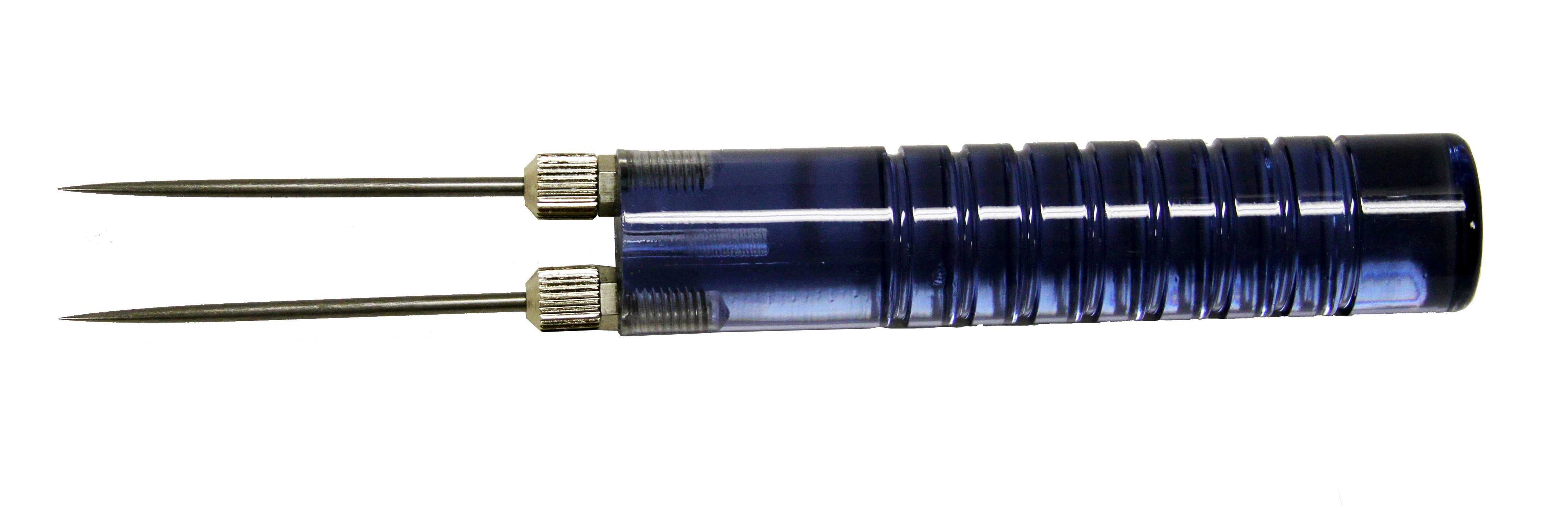

HP-1

Makes pilot holes in stucco to reduce pin damage.

(Price: $57.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

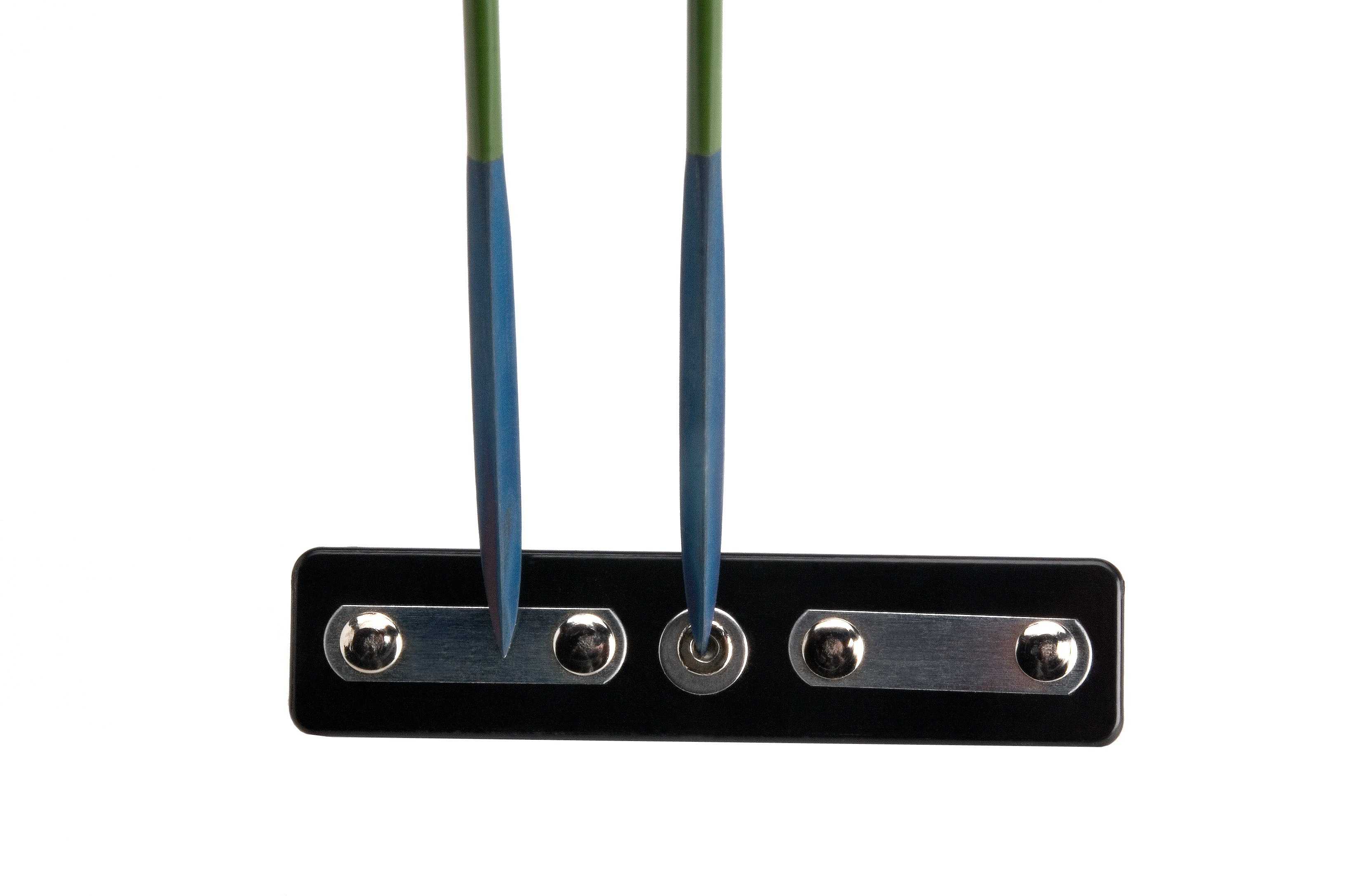

MCS-1

Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-1 is also available with a letter of certification traceable to NIST.

(Price: $45.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

TechCheck PLUS Electrodes:

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

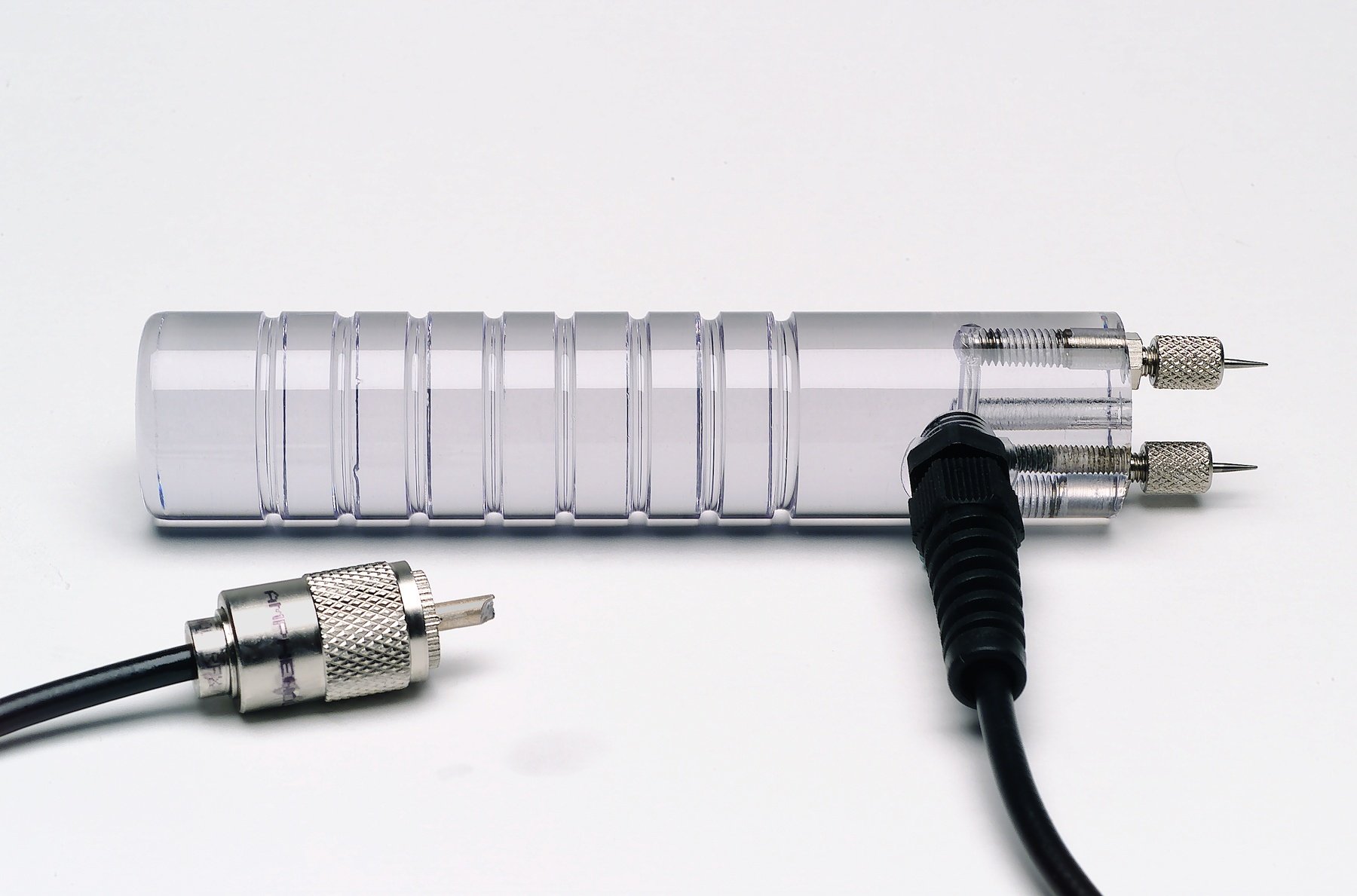

2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications:

  • Home inspector: Use on wood joists and drywall.
  • Paper producer: Use on curved surfaces such as cardboard and paper tubes.
  • Woodworker: Use on timber, poles, and veneer.

2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

(Price: $90.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

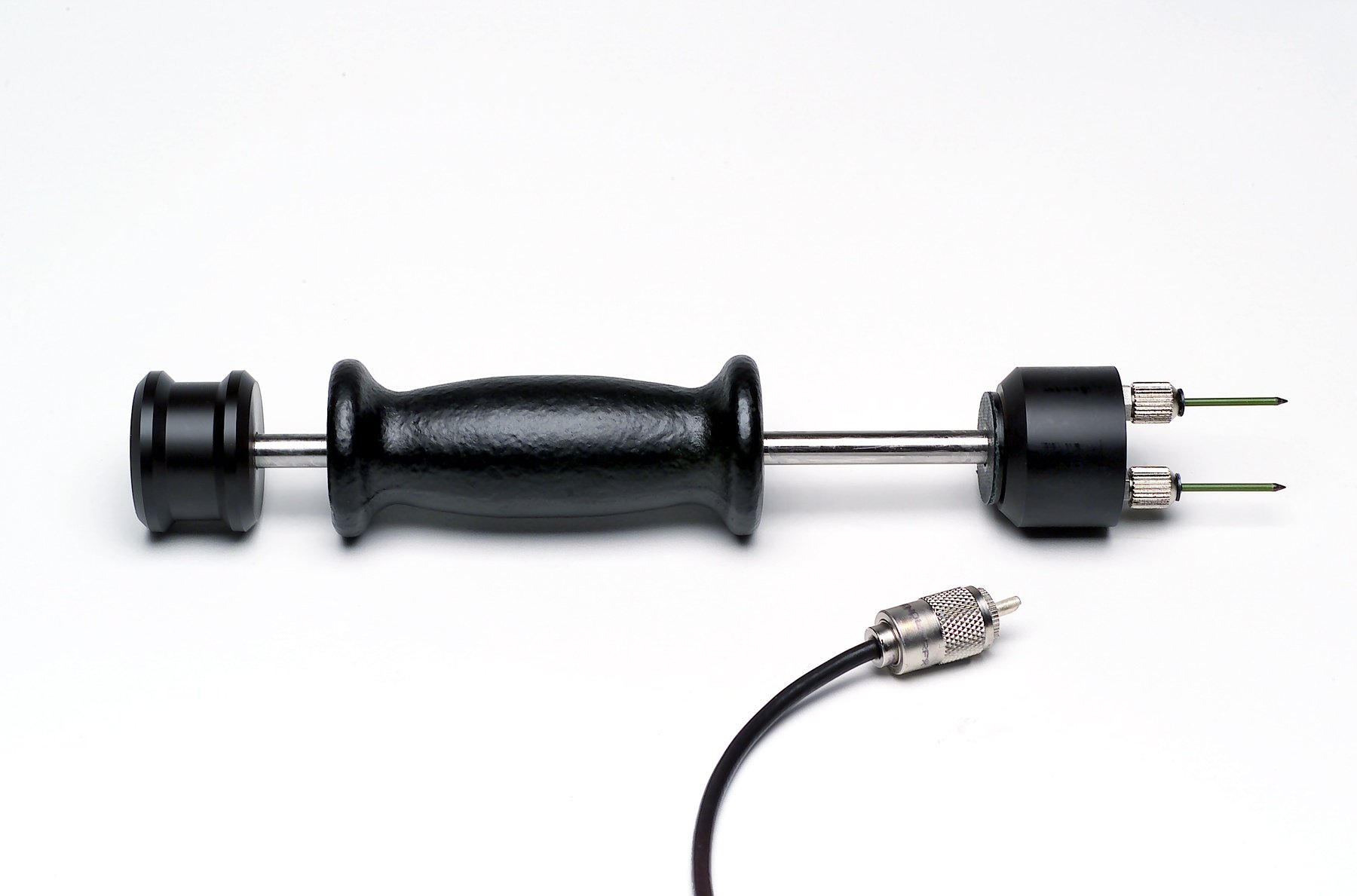

26-ES

The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications:



  • Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
  • Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
  • Furniture manufacturers and craftsmen: Easily check high density hardwood that short pins are unable to penetrate.

Also available as the 26-ED, which includes gauge to measure pin penetration depth.

(Price: $150.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

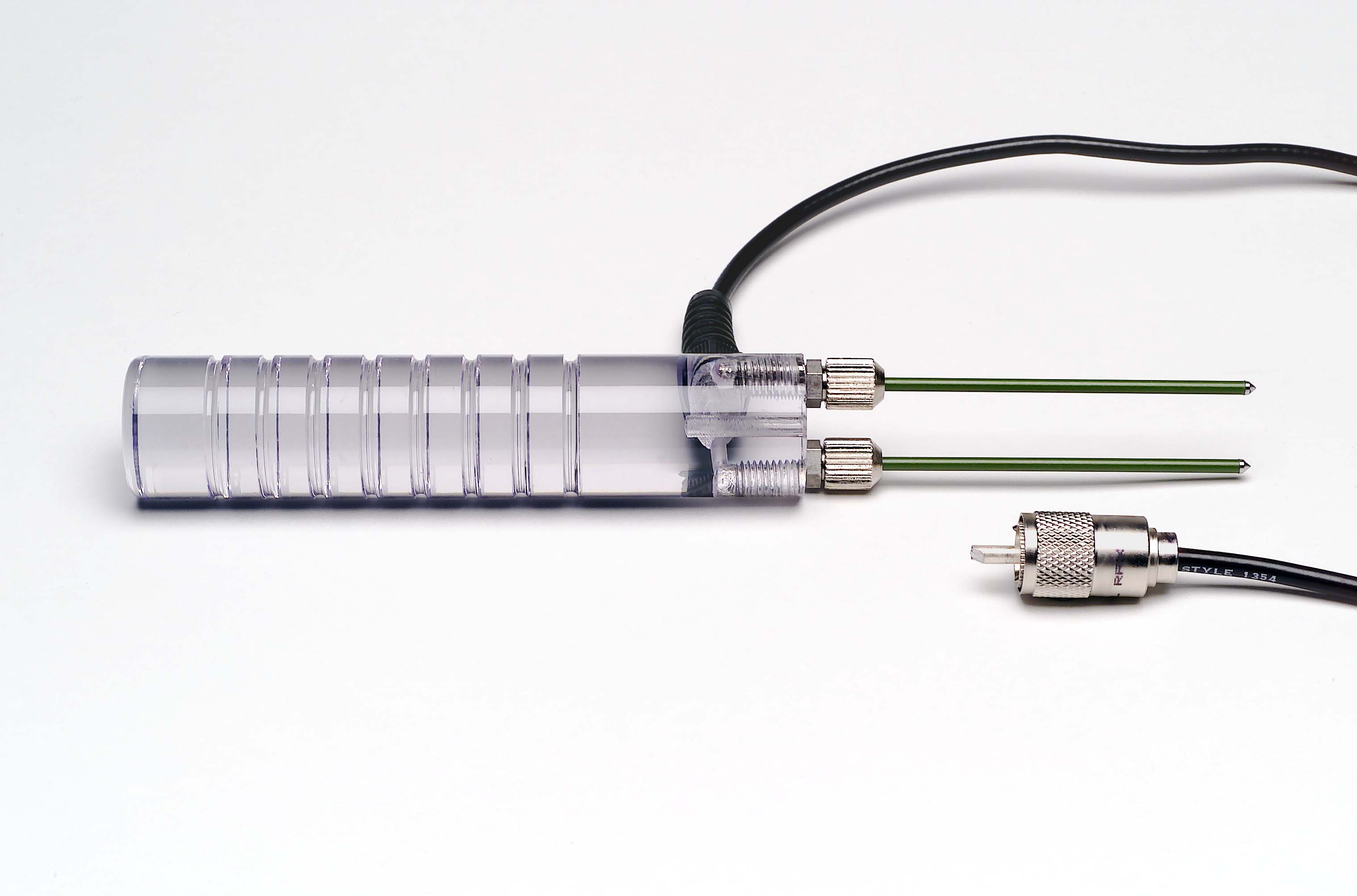

21-E

The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".

Great for use on roofs, insulation, or EIFS.

21-E is also available as the 21-E/001 with 6" penetration, or as the 21-ET with a tapped handle for hard to reach areas.

(Price: $112.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

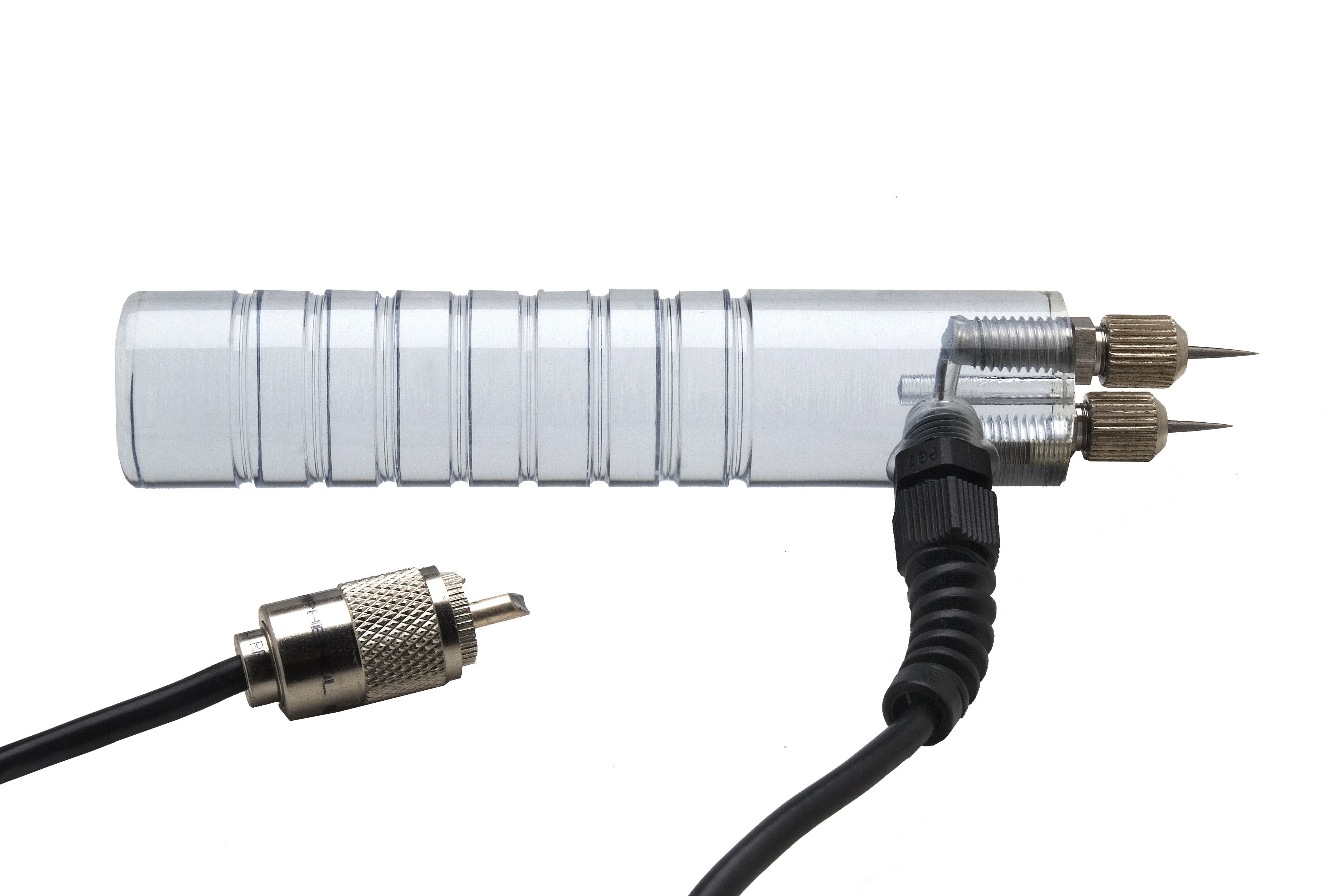

22-E

Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.

22-E is also available as the 22-ET with a tapped handle for hard to reach areas.

(Price: $93.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

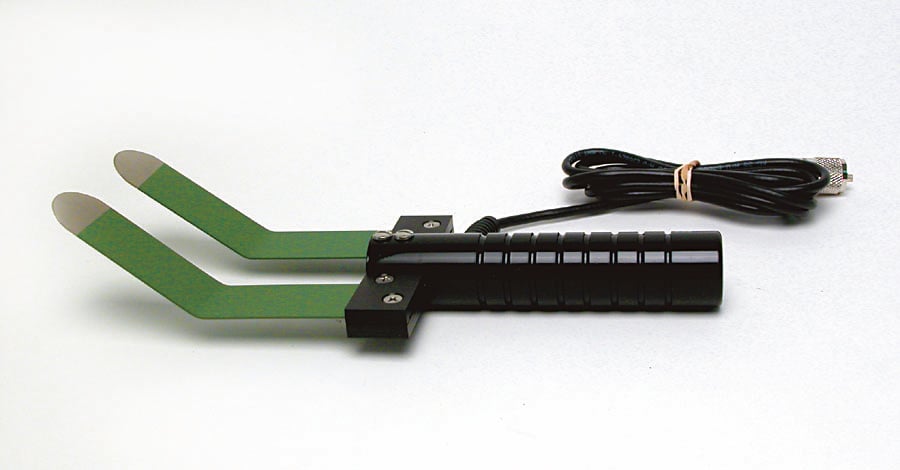

19-E/STC

Features two 5'' long blades, bent to a 35° angle, and coated in Teflon except for the tips. Great for checking behind trim and baseboard molding.

(Price: $205.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

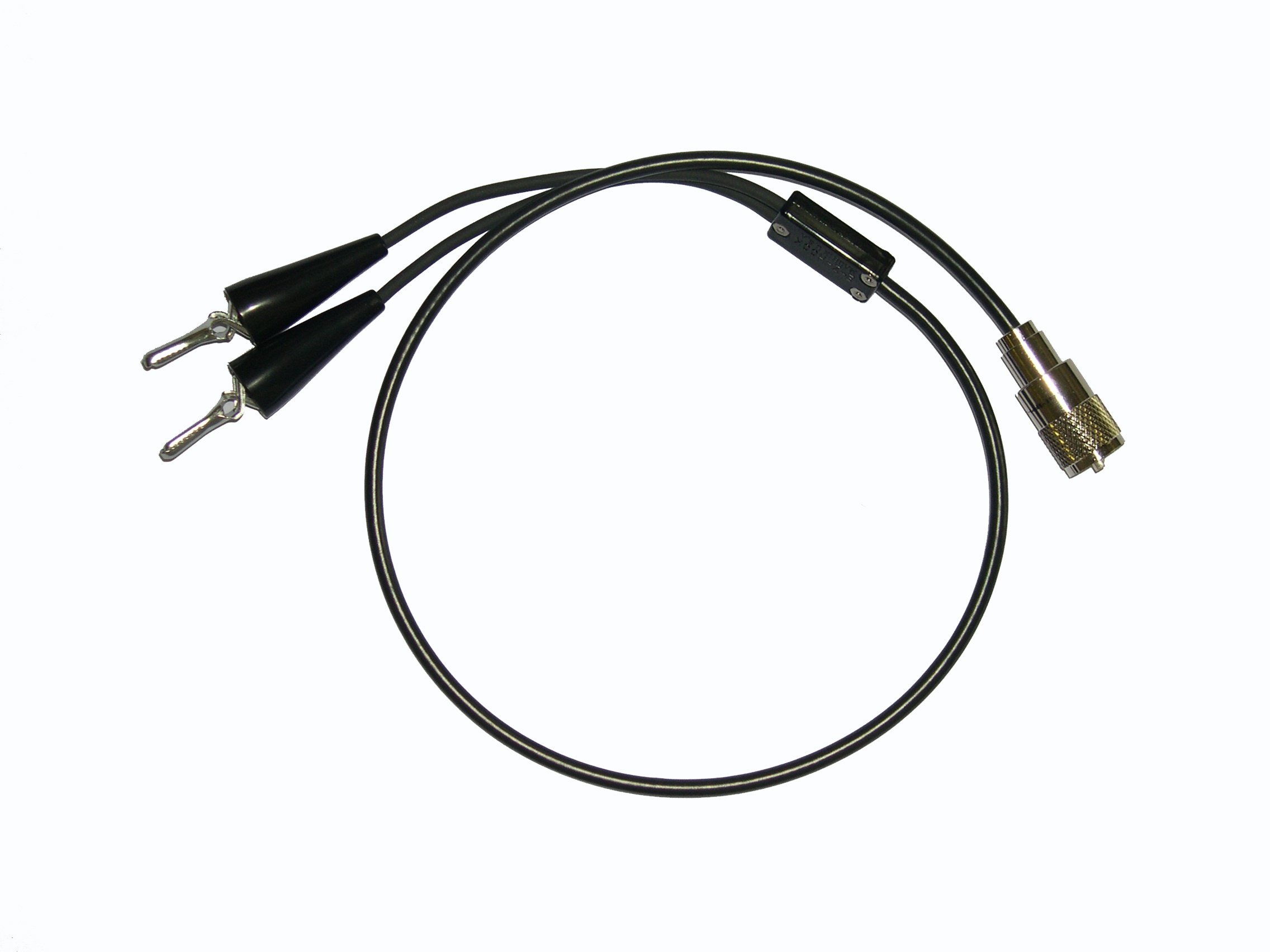

2-E/SPLIT

Makes moisture testing in hard to reach places a breeze. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split and test behind toe kicks, through drywall, or any other area where our standard length contacts pins aren’t long enough.

(Price: $120.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
